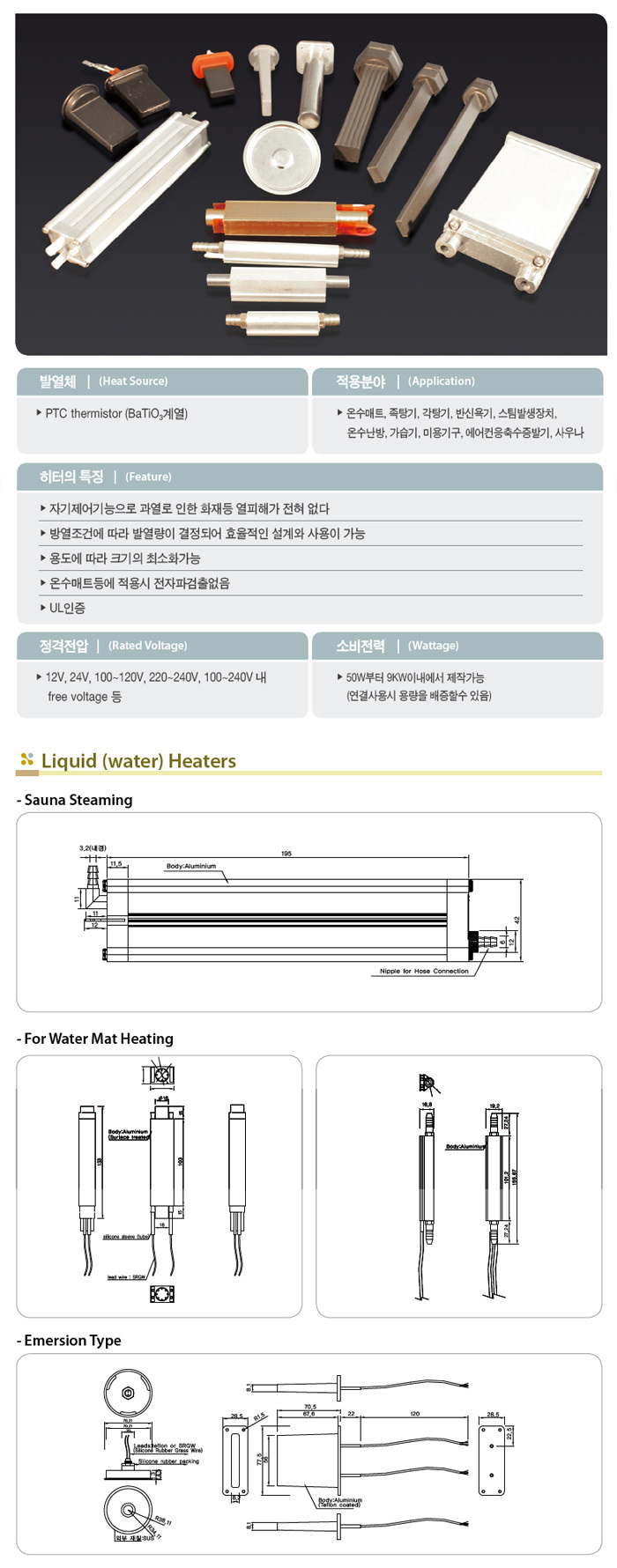

PTC LIQUID HEATING ELEMENTS
RATED VOLTAGE :
12-240V
HL SERIES LIQUID HEATERS /
POWER RATING :
100-12,000W
STEAM GENERATRORS
MAX CURRENT PER TERMINAL :
0.5-20A


A.Single-Pass System



SUNLEAD/VICTON's dual function HL series
PTC Liquid Heater / Steam Generator systems feature a patented compact design that rapidly heats liquids through an advanced network of PTC heating thermistors. Two available designsare single-pass and multi-pass systems. Depending on the power requirement, the modular design allows the construction of a single heating cell or a multi-cell heating complex for a variety of liquid heating applications.








B.Multi-Pass System

1.Single-pass System :
L:
50-200mm
L1:
17.2mm
L2:
23mm
W:
19-50mm
H:
15-50mm
2.Multi-pass System :
L:
53-200mm
W:
35mm
H:
42.3mm
W1:
35-175mm⊥N
N=# of single heating cell








PTC LIQUID HEATING ELEMENTS

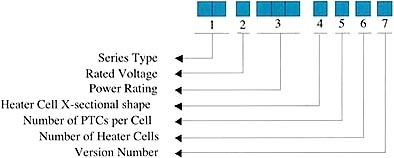

MODEL NOMENCLATURE

HL6200A311
HL :
HL Series
6 :
VR=10-16V
200 :
200W
A :
Tech drawing SVDD004
3 :
3 PTC per cell
1 :
1 cell total
1 :
Single-Pass
HL212KB862
HL :
HL Series
2 :
VR=220-240V
12K :
1,200W
B :
Tech drawing SVDD005
8 :
8 PTC per cell
6 :
6 cell total
2 :
Mult-Pass



STANARD MODELS
Model No.
VR(V)
P(W)
Water Flow Rate
T(C)
APPLICATIONS
HL6200A311
12
300
3L/hr
70
Coffee Pot Water Heater
HL21K5B612
240
1500
60L/hr
18
Water Heater for Washing Machine
HL212KB862
240
12,000
480L/hr
18
Instant Water Heater/Steam for Shower & Sauna
Note:T=Exit Water Temp-Input Water Temp (25C)

When placing an order, please provide specification paremeters as indicated in the above table.

Note 1:The table provides standard HL PTC heaters available for production.

Note 2:For heaters of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations.
Non-standard unit quotations usually provided after the fabrication of the prototype.
