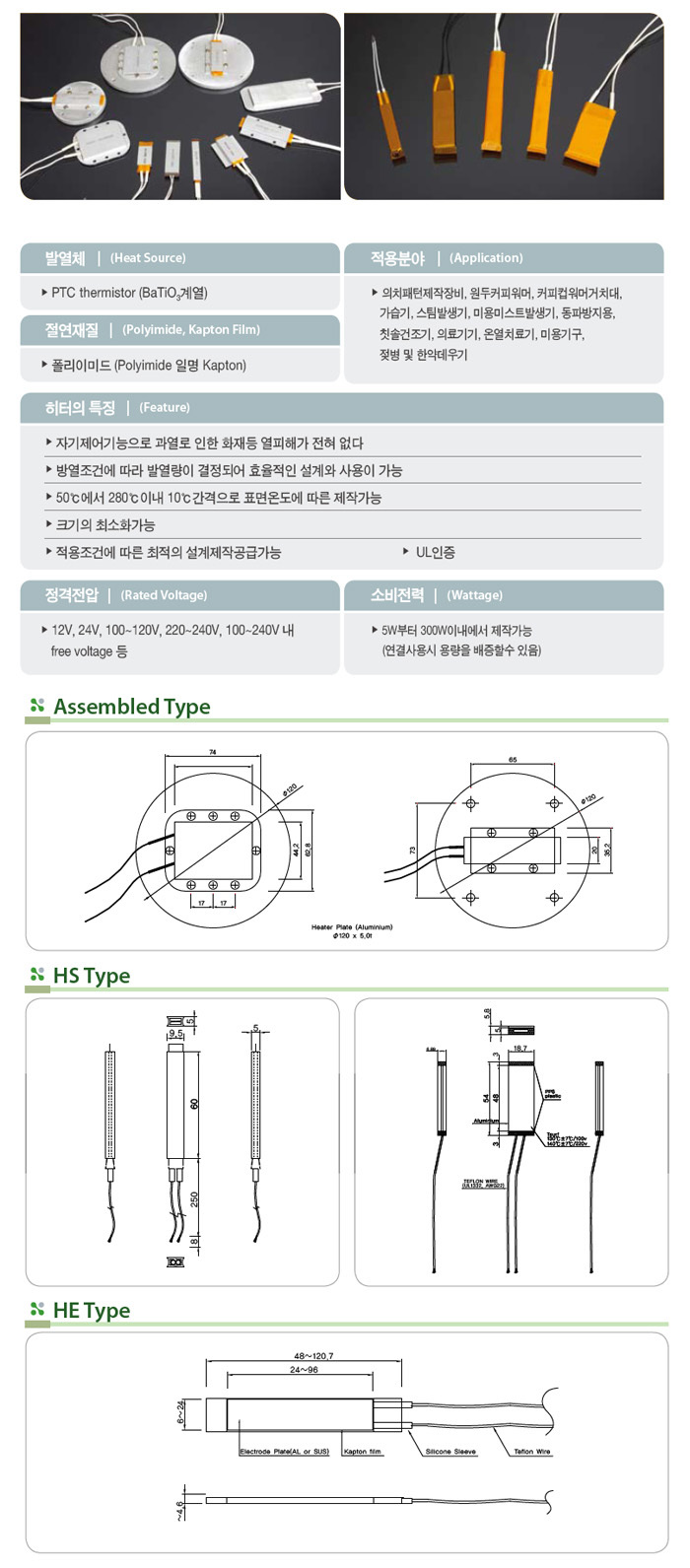

PTC SURFACE HEATING ELEMENTS

Patented design allowing transferring of heat generated by PTC thermistors to various heating surfaces. Each heater is designed
to possess a single temperature point. The heater ends can be open or sealed with silicon adhesives to prevent moisture or water intrusion. Different exterior shapes can be fabricated for compatibility with heating surfaces.
HE SERIES PTC
HEATING ELEMENTS
RATED VOLTAGE : 6-240V
SURFACE TEMPERATURE: 50-280C
MAX CURRENT PER TERMINAL: 0.5-20A



I :
30-322mm
w :
9-50mm
t :
3.2-6.2mm



I :
50-322mm
(diameter) :
13-50mm
x-section shape :
Various



I :
30-322mm
W :
9-50mm
t :
5-6.2mm
x-section shape :
Various

PTC SURFACE HEATING ELEMENTS


UL APPROVED HE SERIES HEATING ELEMENTS
UL APPROVED HS SERIES HEATING ELEMENTS



STANDARD MODELS
Model No.
VR
(V)
2TSURF
C
HIPOT
Rating
Cross-section
Shape
Dimension
(mm)
HE618B2A1
12
806C
500V/5mA/1sec
23⊥13⊥2.2
HE61BA2A1
12
1056C
1000V/5mA/1sec
24⊥14.7⊥3.5
HS21L1A01
220
2106C
2500V/5mA/1sec
65⊥18.8⊥5.1
HS22K1A01
220
2006C
2500V/5mA/1sec
65⊥18.8⊥5.1
HS12L1A01
110
2006C
2500V/5mA/1sec
65⊥18.8⊥5.1
HS11M1A01
110
2156C
2500V/5mA/1sec
65⊥18.8⊥5.1
HS02G2B01
220
1606C
3750V/5mA/1sec
15.7⊥80
HS11E1A01
120
1356C
3750V/5mA/1sec
35⊥35⊥7.7
HS21N1A01
230
2356C
3750V/5mA/1sec
40⊥18.8⊥5.05
HS11C1A01
120
1156C
3750V/5mA/1sec
35⊥35⊥7.7
HS22N1A01
220
2356C
3750V/5mA/1sec
50⊥30⊥6.2
HS02KA01
220
1956C
2500V/5mA/1sec
50⊥30⊥5.8
HS22J1A01
230
1856C
3750V/5mA/1sec
40⊥30⊥6.3
HS21J1A01
220
1856C
2500V/5mA/1sec
38⊥18.8⊥5.45
HS22G2C01
220
2356C
3750V/5mA/1sec
15.7⊥80

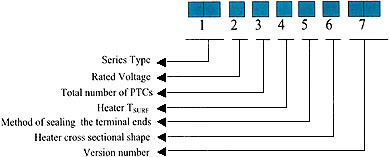

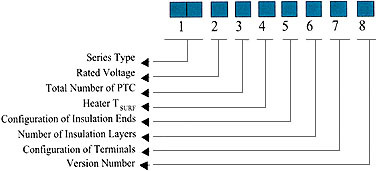

HE22KB3A1
HE:
HS Series
2:
VR-220-240V
2:
2 PTC stones total
K:
TSURF=200?/220
B:
closed at one end
3:
3 insulation layers
A:
Same side
I:
KAPTON used
HS02K2A01
HS:
HS Series
0:
VR=100-240V
2:
2 PTC stones total
K:
TSURF=200?/220
2:
Moisture resistant
A:
Rectangular
01:
PPS plugs used

When placing an order, please provide specification parameters as indicated in the above table.

Note 1:The table provides standard heating elements available for production.

Note 2:For element of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-standard unit quotation are usually provided after the fabrication of the prototype.
