CERAMIC PTC THERMISTORS : MOTOR STARTERS & DEGAUSSERS

CONTROLLERS
PM Series PTC Thermistors
MS Series Motor Starter
PTC thermistors are used to "start" single phase compressor motors for refrigerators, deep freezers, and air-conditioning units. They function by channeling high intensity currents through the starting coil for short period. This generates sufficient torque force to initiate turning of the main motor. The PTC auto-regulating property will effectively "switch off" the staring coil after the starting cycle.



PD Series PTC Thermistors
DG/DD Series Degausser

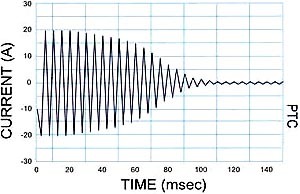

PTC thermistors are used to provide short pulse of high intensity currents through the demagnetizing coil of TV monitors to offset picture distortions caused by magnetization of the shadow mask and other internal metallic parts of the CRT tube.

CERAMIC PTC THERMISTORS : MOTOR STARTERS&DEGAUSSERS

MODEL NOMENCLATURE
MSE3R3MB1
MS:
Motor Starting
E:
Curie Temp=135C
3R3:
R25C=3.3
M:
20?
B:
Two Terminal Tabs
1:
Version 1
DG63R0QA1
DG:
Degaussing
6:
Curie Temp=60C
3R0:
R25C=3.0
Q:
+30?,-20?
A:
Three Terminal Tabs
1:
Version 1



STANDARD MODELS:MOTOR STARTING THERMISTORS
Model
R25C
()20?
TSW5C
(C)
VMAX
(V)
IMAX
(V)
TOP
(sec)
TR
(sec)
PW
(W)
VW/S
(V)
MSE3R3MB1
3.3
135
160
12
0.35-2.0
<75
4.0
>300
MSE4R7MB1
4.7
135
160
12
0.35-2.0
<75
4.0
>300
MSE6R8MB1
6.8
135
200
12
0.35-2.0
<75
3.5
>450
MSE22RMB1
22
135
300
7
0.35-2.0
<70
3.5
>500
MSE33RMB1
33
135
355
6
0.35-2.0
<70
3.5
>600
MSC4R7MB1
4.7
120
180
12
0.35-2.0
<80
3.5
>300
MSC22RMB1
22
120
300
9
0.35-2.0
<75
3.5
>600
MSC40RMB1
40
120
355
6
0.1-1.2
<85
4.0
>900



STANDARD MODELS : DEGAUSSORS
Model
R25C
()?
VR
(V)
VMAX
(V)
IP-P(@25C)
(A)
VW/S(V)
/3min
Required Pre-
condition for use
0s
3s
180s
VOLT.
(V)
RL
()
DG63R0QA1
3.0
(+30,-20)
100/120
140
29
0.3
0.007
180
100
5
DG65R0MA1
5.020
100/120
140
25
0.3
0.003
180
100
5
DG67R0MA1
7.020
100/120
140
17
0.3
0.008
300
120
10
DG612RMA1
12.020
220/240
270
25
0.23
0.035
340
220
10
DG614RMB1
14.020
220/240
270
26
0.28
0.035
380
220
10
DG69R0QA1
9.0
(+30,-20)
220/240
270
18
0.3
0.007
320
200
20
DG69R0QB1
9.0
(+30,-20)
220/240
270
18
0.3
0.05
320
200
20



When placing an order, please provide specification parameters as indicated in the standard model list.

Note 1:The table provides standard PTC components currently in production.

Note 2:For components of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-standard unit quotations are usually provided after the fabrication of the prototype.
