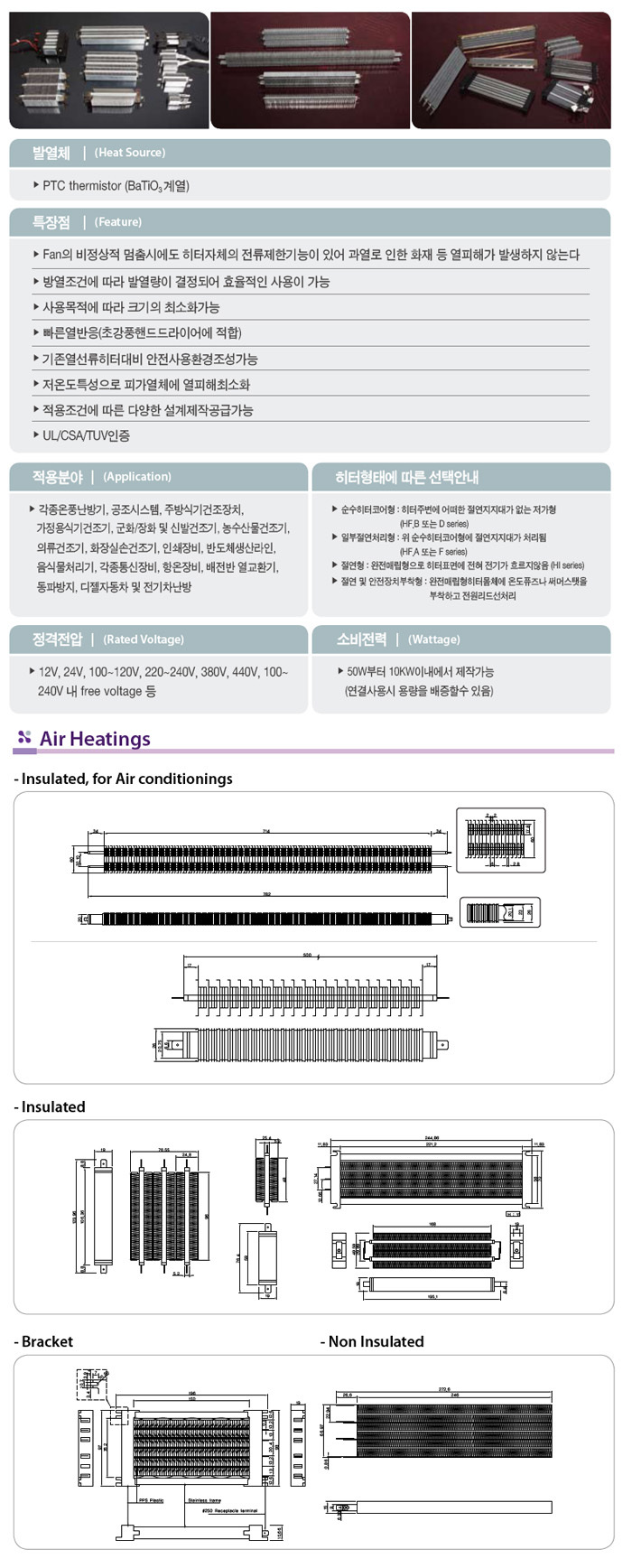

HF SERIES PTC FAN HEATING ELEMENTS




Specifically designed for auto-regulated air heating applications with the use of independent control system. Can be used in air heating applications such as space heaters, clother dryers, dish dryers, hand dryers, de-humidifiers, ets.
Specific rating and size available upon request
German Patent; TUV, CSA, UL certified
RATED VOLTAGE:
12-600V
POWER@25C ,3.3m/s airflow
100-8000W
MAX SURFACE TEMP.
235C
MAX CURRENT PER TERMINAL
0.5-20A

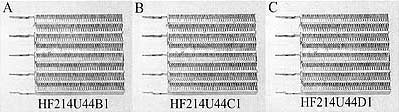

A:Standard Configuration
B:Plastic framing around PTC row
C:Silicon framing around PTC row
L1:
24-350mm
L2:
50-376mm
W1:
21.5-23.0mm
W2:
21.5-276mm
T:
10-15mm




Patented electrically isolating design provides enhanced moisture and dust protection on PTC heating core.
Designed for air heating applications where environmental factors are of a concern and electrical insulation is a must.

Specific rating and sizes are available upon request

World wide patent; UL certified



PTC AIR HEATING ELEMENTS

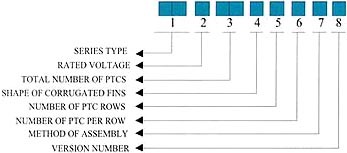

HF216U44B1
HI433U3BB2
HF :
Standard heating element
HI :
Electrically insulated element
2 :
Rated Voltage=220-240V
4 :
Rated Voltage=600V
16 :
Contains 16 PTC stones total
33 :
Contains 33 PTC stones total
U :
"U" shaped fins
U :
"U" shaped fins
4 :
Contains 4 PTC rows
3 :
Contains 3 PTC rows
4 :
4 ceramic chips per row
B :
11 ceramic chips per row
B :
Glued type heater
B :
Glued type heater
1 :
Version 1
1 :
Version 1



UL SERIES STANDARD MODEL HEATING ELEMENTS
Model No.
VR
(V)
Ir
(A)
Power
(W)
W/S Volt.
(V)
Dimension
(mm)
HF214U44A1(2DU44A)
220-240
8
1500
+5,-10?
>360
120⊥107⊥15
HF114U44B1(1DU44B)
100-120
20
>240
96⊥88.5⊥15
HF214U44B1(2DU44B)
220-240
18
>360
HF108U24B1(18U24B)
100-120
11
750
+5,-10?
>240
96⊥44.5⊥15
HF208U24B1(28U24B)
220-240
10
>360
HF104U14B1(14U14B)
100-120
6
400
+5,-10?
>240
96⊥22.5⊥15
HF204U14B1(24U14B)
220-240
5
>360
HF112U26B1(1CU16B)
100-120
15

1200
+5,-10?

>240
148⊥44.5⊥15
HF212U26B1(2CU16B)
220-240
14
>360
HF106U16B1(16U16B)
100-120
7
600
+5,-10?
>240
148⊥22.5⊥15
HF206U16B1(26U16B)
220-240
6
>360



UL HI SERIES STANDARD MODEL HEATING ELEMENTS
Model No.
VR
(V)
Ir
(A)
Power
(W)@3.3m/s
W/S Volt.
(V)
Dimension
(mm)
HI433U3BB2
600
20
2300
650
326⊥9.0⊥18.8
HI112U43B1
100
20
1130
240
123.6⊥80⊥18.8
HI116U44B1
120
20
1500
240
130⊥100⊥18.8

When placing an order, please provide specification parameters as indicated in the above tables.

Note 1:The table provides standard heating elements available for production.

Note 2:For element of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-
standard unit quotations are usually provided after the fabrication of the prototype.

PTC AIR HEATING ELEMENTS

TUV SERIES HEATING ELEMENTS
2 48 U 4 12 C 803214120
2 :
220-240V
48 :
48 PTC Stones
U :
"U" Shape fins
4 :
4 PTC rows
12 :
12 Stones per row
C :
PPS Plastic Shield
803214 :
PTC Dimension:28.0⊥13.2⊥1.4mm
120 :
Fin Height=12.0mm
Note:In some cases, this row may contain dummy stones.
RATED VOLTAGE:
220-240VAC, 50Hz
MAXIMUM POWER:
8000W
MAXIMUM CURRENT PER TERMINAL:
16A
AIRFLOW:
3.3m/s
MAXIMUM SURFACE TEMPERATURE:
200C



TUV SERIES STANDARD HEATING ELEMENTS
Model No.
VR
(V)
Ir
(A)
Power
(W)@3.3m/s
W/S Volt.
(V)
Dimension
(mm)
216U404C304521095
220
※15
1660
360
96⊥88.4⊥15
208U204C304521095
220
※10
835
360
96⊥44.2⊥15

When placing an order, please provide specification parameters as indicated in the above tables.

Note 1:The table provides standard heating elements available for production.

Note 2:For element of non-standard dimensions, please send specific inquiries to our sales department.

Note 3:Unit price for the standard unit is set according to the purchase volume. Please ask for direct quotations. Non-
standard unit quotations are usually provided after the fabrication of the prototype.
